Absolute freedom with MX UTV
MX UTV is the new AiM dash logger specifically designed for the off-road world, in order to offer our best technology to those racers whome crave for running in absolute freedom.
MX UTV acquires and shows the following important information:
- data coming from your ECU
- transmission belt temperature, by using the infrared sensor included in the kit
- GPS Data: speed, position, time of the day and, with a precision of 1/100 sec, the lap times, thanks to the powerful built-in GPS Module.
ECU: set it up on your device!
MX UTV allows you to select your vehicle brand and type directly from the dash menu, in order to get the following data from the different ECUs:
- Polaris RZR - Speed, RPM, Gear, ECT, TPS, Brake SW, Fuel rate
- Polaris RZR turbo - Speed, RPM, Gear, ECT, TPS, Brake SW, Fuel rate, Boost Pressure, Charge Air temp
- CAN-AM - Speed, RPM, Gear, ECT, TPS, BrakeSW, Instant fuel flow
- CAN-AM Turbo - Speed, RPM, Gear, ECT, TPS, BrakeSW, Instant fuel consumed, Boost pressure, Intake Air Temp
- Yamaha YXZ 2016 - Speed, RPM, Gear, ECT
- Yamaha YXZ 2017 - Speed, RPM, Gear, ECT, TPS, BrakeSW
- Arctic Cat Wildcat - Speed, RPM, Gear, ECT, TPS, BrakeSW

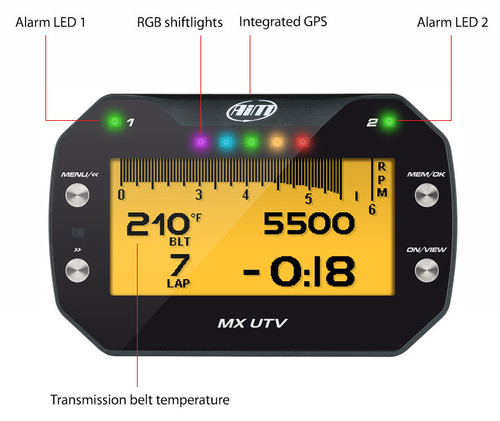

Transmission belt temperature, no more worries
The transmission belt temperature is one of the main concern for UTV drivers.
Thanks to the infrared temperature sensor, included in the kit, it is possible to constantly check the temperature, reading it directly on the display.

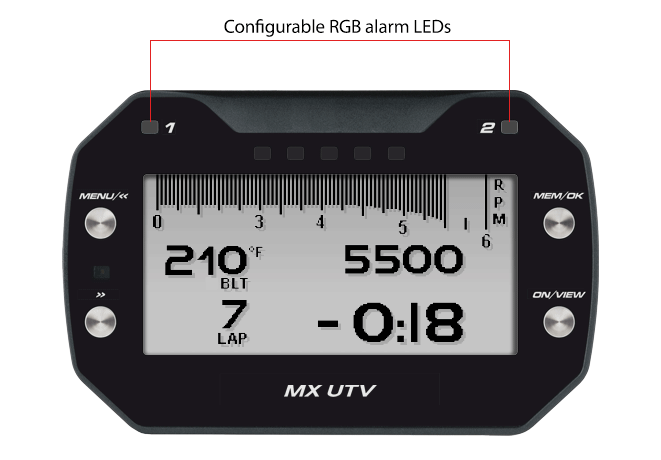

Two RGB alarm LEDs will turn on when the temperature gets close to the critical level.
Find always your track and your data as well
Thanks to the integrated GPS Module, MX UTV automatically recognizes the track you are racing on and calculates lap times and your position on the track with high precision.
Besides, thanks to the auto-learning mode, MX UTV will anytime be able to add new tracks into its internal tracks database.
All the acquired data, from the ECU, from the Belt Temp Sensor and from the GPS are stored into a huge 4 GB internal memory, that can log your data for several thousands of hours.
